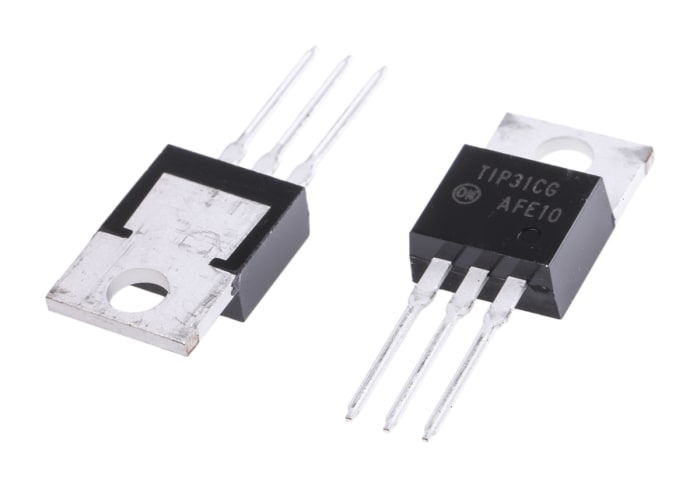

onsemi TIP31CG NPN Transistor, 3 A, 100 V, 3-Pin TO-220AB
Technical Document
Specifications
Brand
onsemiTransistor Type
NPN
Maximum DC Collector Current
3 A
Maximum Collector Emitter Voltage
100 V
Package Type
TO-220AB
Mounting Type
Through Hole
Maximum Power Dissipation
40 W
Minimum DC Current Gain
10
Transistor Configuration
Single
Maximum Collector Base Voltage
100 V
Maximum Emitter Base Voltage
5 V
Maximum Operating Frequency
3 MHz
Pin Count
3
Number of Elements per Chip
1
Dimensions
9.28 x 10.28 x 4.82mm
Maximum Operating Temperature
+150 °C
Product details
NPN Power Transistors, ON Semiconductor
Standards
Manufacturer Part Nos with NSV prefix are automotive qualified to AEC-Q101 standard.
