EPCOS, Standard Metal Oxide Varistor 470pF 25A, Clamping 360V, Varistor 220V

RS Stock No.: 289-7020Brand: EPCOSManufacturers Part No.: B72210S0141K101
brand-logo
View all in Varistors

Technical Document

Specifications

Brand

Epcos

Varistor Voltage

220V

Maximum AC Voltage Rating

140V

Maximum DC Voltage Rating

180V

Clamping Voltage

360V

Clamping Current

25A

Material

Metal

Energy

22J

Series

Standard

Diameter

12mm

Maximum Surge Current

2500A

Capacitance

470pF

Thickness

4.3mm

Dimensions

12 (Dia.) x 4.3mm

Lead Pitch

7.5mm

Product details

Metal Oxide Varistors Standard Series

Standard radial epoxy-coated MOV with tinned-copper leads.

Tinned copper wire leads with a ceramic body coated with epoxy resin
Rated for surge current (8//20 μs) and for energy (2ms)

Approvals

UL, CSA, VDE

You may be interested in
Varistor,metal oxide,radial,115Vrms,S10
Varistor,metal oxide,radial,115Vrms,S10Brand: Epcos
P.O.A.Each (In a Pack of 5) (Exc. Vat)

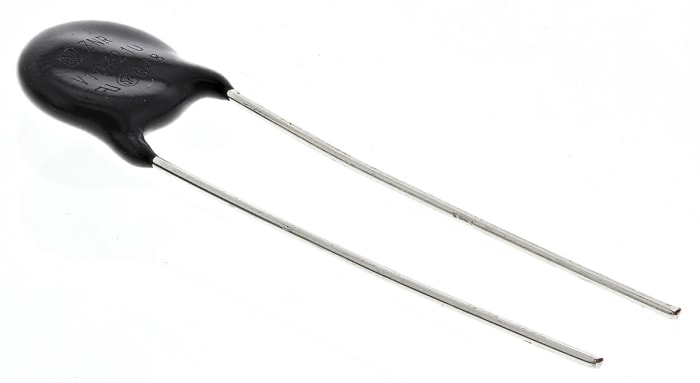

Panasonic, V Surge Absorber 410pF 25A, Clamping 360V, Varistor 220V
