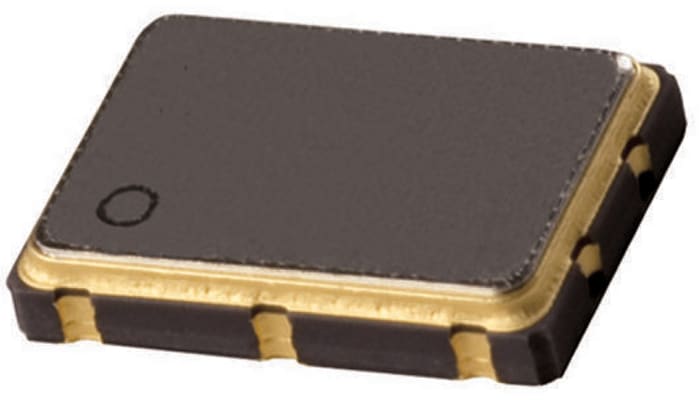

Epson, 125MHz XO Oscillator, ±100ppm LVDS, 6-Pin SMD Q3806CA10003901

RS Stock No.: 667-6385PBrand: EpsonManufacturers Part No.: Q3806CA10003901
brand-logo
View all in Crystal Oscillators

Technical Document

Specifications

Brand

Epson

Oscillator Type

XO

Output Frequency

125MHz

Frequency Stability

±100ppm

Package Type

SMD

Output Level

LVDS

Mounting Type

Surface Mount

Minimum Operating Temperature

0°C

Height

1.2mm

Maximum Operating Temperature

70°C

Width_SC_PC

5mm

Length

7mm

Dimensions

7 x 5 x 1.2mm

Product details

EG-21xx

Crystal Oscillators 7x5mm Ceramic case
