Technical Documents
Specifications
Brand
FestoProduct Type
Solenoid Valve
Port Size
1/2 in
Connection Thread Standard
G
Actuation Type
Solenoid
Solenoid Type
Single
Series
VZWF
Voltage
24V dc
Seal Material
Nitrile Rubber (NBR)
Mount Type
In-Line
Number of Ports
2
Maximum Operating Pressure
10 bar
Body Material
Brass
Minimum Operating Temperature
-10°C
Maximum Pilot Pressure
10bar
Minimum Pilot Pressure
0bar
Port Gender
Female
Maximum Flow Rate
2.5m³/h
Valve Function
2/2
Maximum Operating Temperature
35°C
Solenoid Power Consumption
11W
Hazardous Area Certification
No
Standards/Approvals
RoHS, EN, ISO
Number of Positions
2
Electrical Connection Type
Plug Connector
Country of Origin
Germany
Product Details

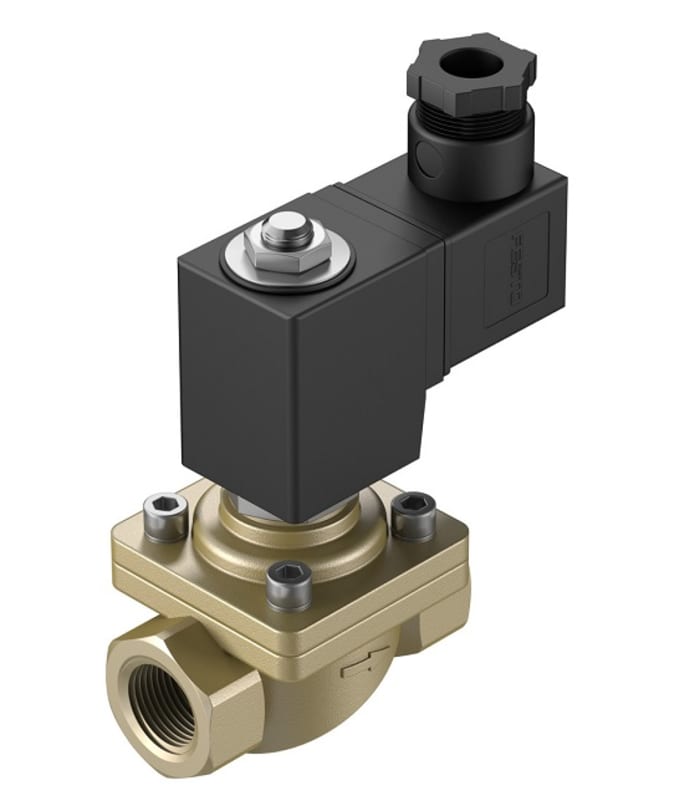

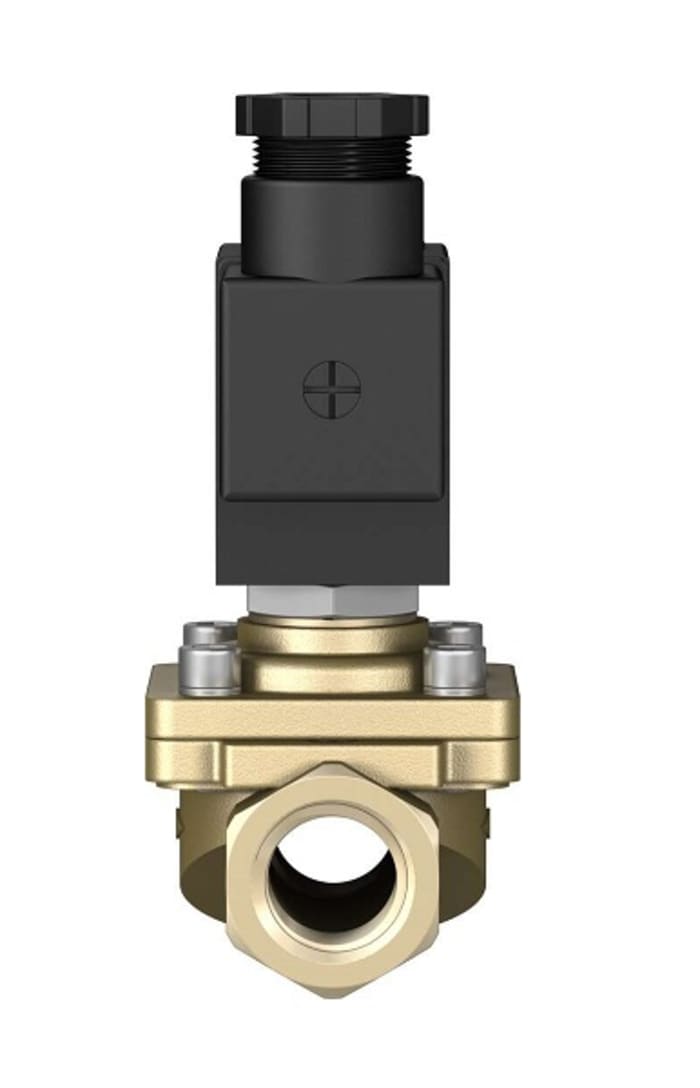

Install this multipurpose force pilot solenoid valve from Festo to direct or stop the flow in your pneumatic system. It's a versatile option that handles water, air, inert gases and other neutral media. The pressure of the compressed medium actuates the valve so it can switch between pressures as low as 0 bar and close automatically when a circuit experiences losses to maintain operations. It has a relatively small solenoid that controls high pressures with large nominal diameters. You can use this valve with automated and control applications to actuate equipment, cylinders or larger valves.
Yes, you can confidently use this Festo solenoid valve in demanding conditions. It has an IP65 (ingress protection) rating, which means it's completely sealed against the dust and low-pressure water sprays you'd expect in agricultural equipment.
