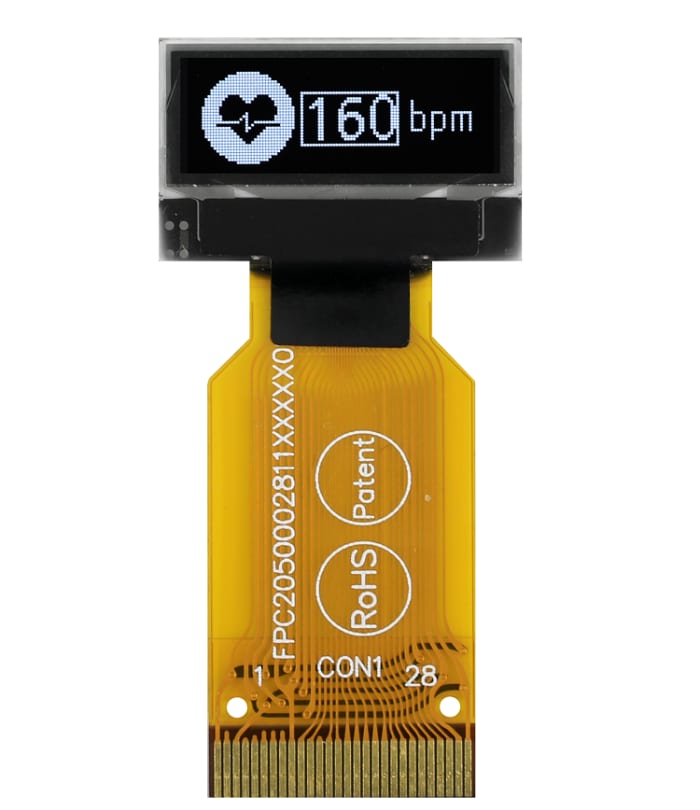

Midas 0.68 in Passive matrix White OLED Display 96 x 32 pixel COT I2C, Parallel, SPI

RS Stock No.: 254-3604Brand: MidasManufacturers Part No.: MDOT096032AV-WM
brand-logo
View all in OLED Displays

Technical Document

Specifications

Brand

Midas

Product Type

OLED Display

Diagonal Display Size

0.68in

Viewing Area Dimensions

16.298 x 5.418 mm

Aspect Ratio

12.32:1.21

Matrix Type

Passive

Screen Resolution

96 x 32 pixel

Interface Type

I2C, Parallel, SPI

Contrast Ratio

2000:1

Driver Mounting

COT

External Depth

1.21mm

Minimum Operating Temperature

-40°C

External Width

19.80mm

External Height

1.21mm

Maximum Operating Temperature

80°C

Standards/Approvals

No

Forward Voltage

3.3V dc

Display Colour

White

View all in OLED Displays
