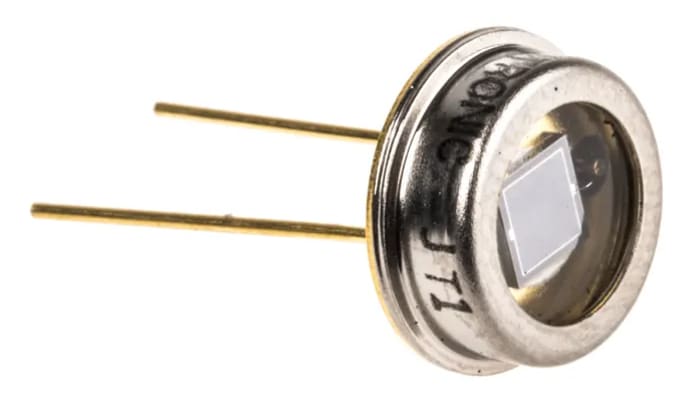

OSI Optoelectronics, OSD5-0 IR Si Photodiode, Through Hole TO-5
Technical Document
Specifications
Brand
OSI OptoelectronicsSpectrums Detected
Infrared
Wavelength of Peak Sensitivity
900nm
Package Type
TO-5
Mounting Type
Through Hole
Amplifier Function
No
Number of Pins
2
Diode Material
Si
Minimum Wavelength Detected
350nm
Maximum Wavelength Detected
1100nm
Height
0.13in
Diameter
9.14mm
Peak Photo Sensitivity
0.54A/W
Series
OSD
Polarity
Reverse
Typical Rise Time
8ns
