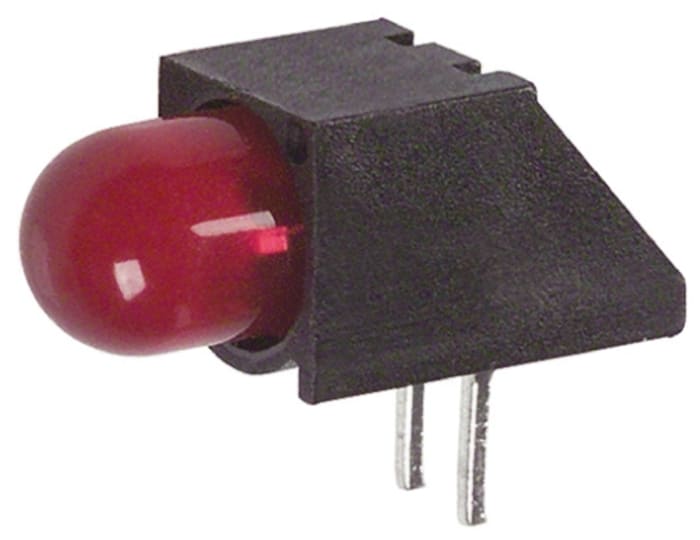

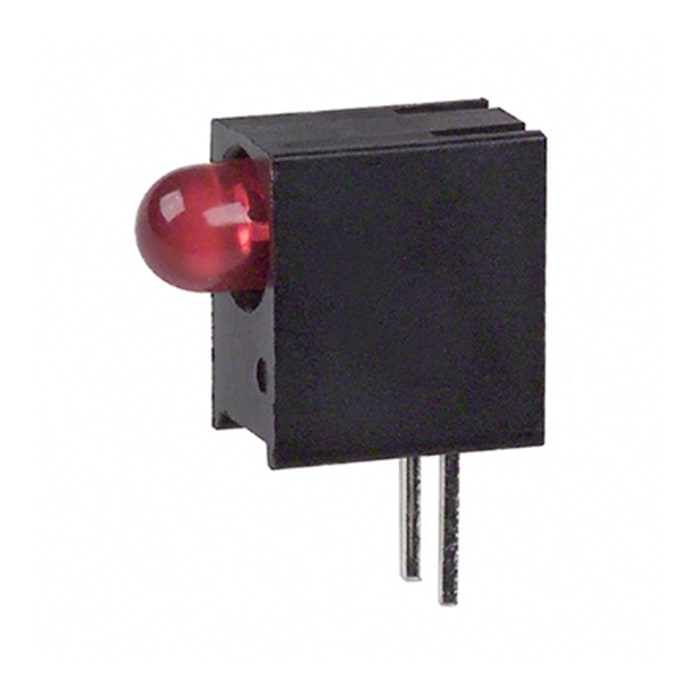

Bivar H101CRD, Red Right Angle PCB LED Indicator 3mm (T-1), PCB Mount
Technical Document
Specifications
Brand
BivarLED Colours
Red
Number of LEDs
1
Mounting Type
PCB Mount
Number of Pins
2
Viewing Angle
40 °
Dominant Wavelength
700 nm
LED Orientation
Right Angle
Dimensions
4.3 x 6.4 x 7.2mm
Length
4.3mm
Width
6.4mm
Height
7.2mm
Intensity
2mcd
Forward Current
20mA
Series
H101
LED Size
3mm (T-1)
Configuration
Single
Lens Finish
Diffused
Country of Origin
United States
Product details
Bivar Through-Hole LEDs
Bivar rectangular 2 mm x 3 mm through hole LEDs are ideal for applications where high luminous intensity and wide viewing angles are required. The rectangular package makes it ideal for creating bar graph displays when arranged in linear LED arrays. The standard lead frame LED is ideal for vertical spacer assemblies and right angle holder assemblies that require lead bends.
Visible Light LEDs, Bivar
P.O.A.
Each (In a Pack of 100) (Exc. Vat)
100
P.O.A.
Each (In a Pack of 100) (Exc. Vat)
Stock information temporarily unavailable.
100
Stock information temporarily unavailable.
