Technical Document
Specifications
Brand
IdecMount Type
Panel Mount
Product Type
Emergency Stop Push Button
Cutout Diameter
16mm
Contact Configuration
DPST
Illuminated
No
Series
XA
IP Rating
IP65
Terminal Type
Solder
Head Style
Mushroom Head
Contact AC Voltage
250V ac
Switch Configuration
On-Off
Depth
19.5mm
Hazardous Area Certification
No
Standards/Approvals
UL, CSA
Safety Contacts
NC
Country of Origin
Japan
Product details

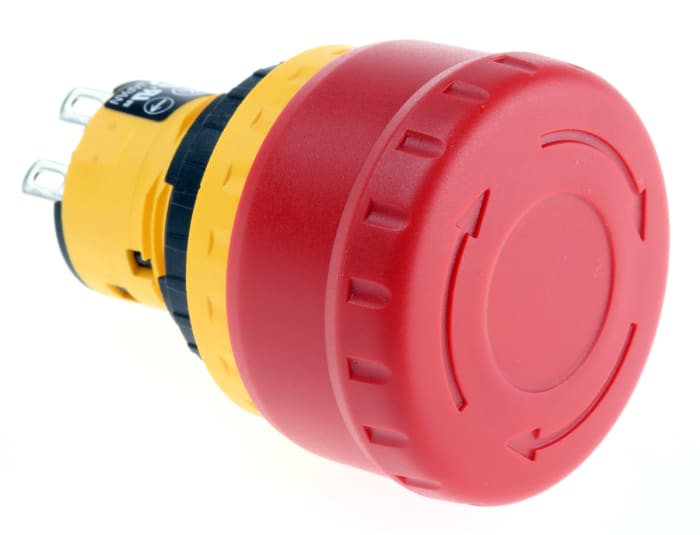

The IDEC XA series "Safe break action" ensures that the normally closed contacts open if the contact block is seperated from the operator. The switch is secured from behind the panel so that the E-Stop cannot be removed from the front.
Simply reset by pulling or twisting the head
16.2 mm panel cut out
ISO13850, EN60947-5-5
Stock information temporarily unavailable.
P.O.A.
1
P.O.A.
Stock information temporarily unavailable.
1
