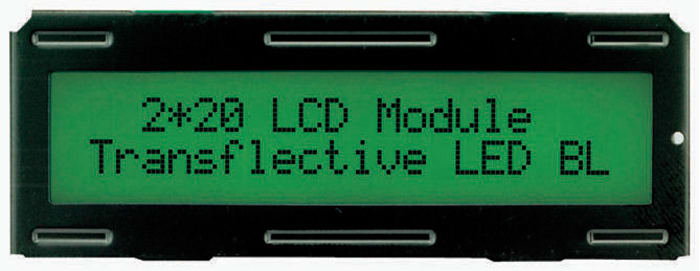

Powertip PC2004LRS-A Alphanumeric LCD Display, 4 Rows by 20 Characters, Transflective

RS Stock No.: 214-3553Brand: PowertipManufacturers Part No.: PC2004LRS-A
brand-logo
View all in LCD Monochrome Displays

Technical Document

Specifications

Display Type

Alphanumeric

Character Matrix

4 Rows by 20 Characters

Character Rows

4

Characters per Row

20

Character Width

4.8mm

Character Height

3mm

Viewing Area Height

76mm

Viewing Area Width

25.2mm

Viewing Area Dimensions

76 x 25mm

Interface Type

8-bit

External Depth

14mm

Backlight Type

LED

External Dimensions

98 x 14 x 60mm

External Height

60mm

External Width

98mm

Controller Type

ST7066U

Display Matrix Technology

FSTN, STN, TN

Display Mode

Transflective

Maximum Operating Temperature

+50°C

Minimum Operating Temperature

0°C

Driver Mounting

COB

Operating Temperature Range

0 → +50°C

Country of Origin

China

Product details

Powertip Transflective backlit LCD STN

Transflective (dark character on a light background) alphanumeric STN and TN dot matrix modules with integral green LED backlight and LCD display drivers

5´7 dot matrix format (except 16´1, which uses 5´10, and 20´4 and 40´4, which use 5´8) with cursor
160 characters and symbols
Wide viewing angle
Single +5V supply
CMOS controller and driver
Parallel interface to 4 or 8-bit microprocessor
Display commands: clear, shift, on/off, read, write
Cursor commands: home, address set
Operating temperature range 0°C to 50°C
